The Evolution of CRC

Color Remediation Column (CRC) chromatography has transformed the botanical extraction landscape. What started as an advanced, underground technique has become an industry standard for purifying extracts, removing unwanted compounds like chlorophyll, lipids, tannins, and oxides, and delivering a crystal-clear, highly potent final product.

But as the market matures, the way labs run CRC is undergoing a massive shift.

For years, extraction technicians had to manually source, weigh, and pack loose filtration media—such as silica, bentonite clay, and activated alumina—into stainless steel columns. Today, high-throughput labs are abandoning the "loose media" headache in favor of standardized, pre-packed disposable filter cartridges.

If your lab is still packing its own columns, here is why switching to a turnkey system like Absolute Filtration Systems (AFS) Filters is the single easiest way to boost your throughput, safety, and bottom line.

1. The Death of Media Standard Operating Procedures (SOPs)

Packing a traditional CRC column is as much an art form as it is a science. If a technician packs the media too tightly, the column clogs, pressure spikes, and production grinds to a halt. If they pack it too loosely, the solvent finds the path of least resistance—a phenomenon known as channeling—rendering the filtration completely ineffective.

Manual packing introduces human error into your core product consistency.

Pre-packaged filter cartridges eliminate the guesswork. With specialized blends licensed from top extraction artists, every single cartridge features perfectly compressed, uniform media. Your filtration metrics remain identical from the first run of the day to the last, ensuring your brand delivers the exact same premium clarity every time.

2. Eliminate Channeling and Media Leakage

One of the biggest nightmares in a hydrocarbon (BHO) or ethanol extraction lab is media blowout. When loose powders escape a manual screen, they contaminate the entire batch of extract, ruining expensive material and clogging downstream equipment.

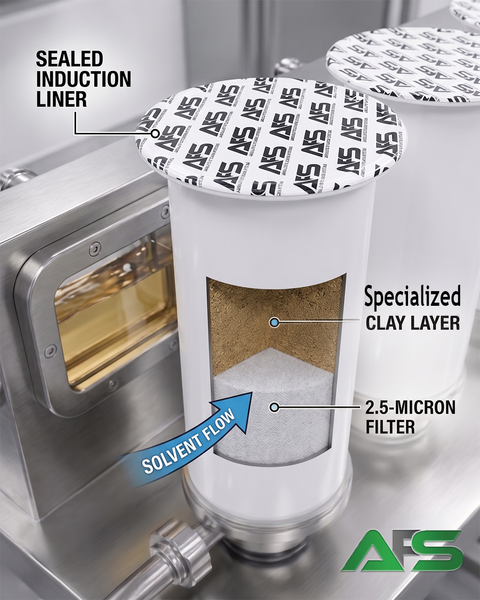

Modern disposable cartridges feature integrated, ultra-fine paper filters (such as the 2.5-micron filters molded directly into AFS cups) that are hermetically sealed into the housing. Because the media cannot bypass the seal, the risk of downstream contamination is entirely eliminated.

Manual Packing vs. Pre-Packed Cartridges

3. Radical Labor Efficiency & Zero Cleanup

Time is money, and skilled extraction technicians shouldn't be wasting hours weighing out fine powders, packing columns, and cleaning up dusty labs.

Think of pre-packed cartridges like the "K-Cups" of the extraction industry. You drop the cartridge into the housing, run your cycle, and when it’s spent, you pull it out and dispose of it.

• No scraping out sticky, spent media.

• No scrubbing down stainless steel housings.

• No trying to unclog baked-on stainless filter screens.

By slashing the downtime between runs from 45 minutes to under 60 seconds, labs can easily fit multiple extra cycles into every shift, directly increasing daily revenue.

4. Enhanced Lab Safety and Air Quality

Handling loose filtration media poses a significant respiratory hazard. Fine particulates from silica and clays can hang in the lab air, requiring heavy PPE, dedicated ventilation hoods, and constant environmental monitoring to protect workers from long-term lung irritation.

Utilizing pre-packaged, enclosed cartridges keeps these fine powders entirely self-contained. It keeps your lab clean, lowers your compliance overhead, and provides a drastically safer workspace for your crew.

Seamless Integration Into Modern Systems

Moving away from loose media doesn't mean buying a completely new extraction rig. Modern disposable cartridges are designed to work harmoniously with the industry's leading hardware.

Integration Options: Cartridges are engineered to slide directly into existing 6-inch columns offered by major OEMs. For labs running alternative configurations, inline external housings with standard 1.5-inch tri-clamp connections allow you to adapt pre-packed filtration effortlessly into any closed-loop system.

With the aid of a standard nitrogen assist (typically recommended at 60 psi to facilitate smooth solvent movement), scaling up your filtration efficiency takes virtually no capital reinvestment.

The Bottom Line

In a highly competitive market, the winning extraction labs are those that operate like precise, repeatable pharmaceutical facilities. Relying on manual, messy, and inconsistent loose-media packing is a bottleneck holding your lab back.

By transitioning to pre-packed, disposable CRC cartridges like those from Absolute Filtration Systems, you lock in product consistency, protect your staff, eliminate downtime, and maximize your processing profit margins.

Ready to Optimize Your Extraction Line?

Explore the full lineup of Light, Medium, and Heavy CRC pre-packed disposable cartridges at afsfilter.com or reach out to their team to find the exact blend for your lab's specific botanical filtration needs.
