Why Dry Biomass vs. Fresh Frozen Extraction Demands Purpose-Built Cartridges

In commercial botanical extraction, one size never fits all. Whether you are running cured, dry biomass for high-yield concentrates or processing flash-frozen live resin to capture volatile terpene profiles, your extraction matrix behaves differently at every stage.

Attempting to use a single, generic color remediation column (CRC) media blend across both fresh frozen and cured inputs often leads to yield-robbing issues: media blinding, stripped terpenes, inconsistent color output, or over-processed extracts.

At Absolute Filtration Systems (AFS), we engineered our Dry Biomass CRC Cartridges and Fresh Frozen CRC Cartridges specifically to solve this problem. By pairing application-specific media recipes with our patent-pending pre-packed cartridge technology, extraction technicians can optimize clarity, preserve flavor, and eliminate operational bottlenecks in seconds.

The Challenge: Cured Biomass vs. Fresh Frozen Matrix

To understand why targeted filtration matters, you have to look at the chemistry of your input material:

1. Dry Biomass (Cured Flower & Trim)

• Chemical Profile: High in oxidized pigments (chlorophyll a/b, pheophytin), lipids, plant waxes, and degradation products accumulated during drying and curing.

• Extraction Conditions: Typically run at ambient or moderately chilled hydrocarbon/ethanol temperatures.

• Filtration Goal: Aggressively adsorb heavy dark pigments, remove residual lipids/waxes, and restore a clear, vibrant amber/gold hue without sacrificing target cannabinoid yield.

2. Fresh Frozen Biomass (Live Resin)

• Chemical Profile: Rich in monoterpenes, volatile flavonoids, moisture, and lighter water-soluble compounds, but lower in oxidized pigments.

• Extraction Conditions: Conducted at sub-zero temperatures (down to -40°C) to prevent moisture extraction and terpene degradation.

• Filtration Goal: Gentle polishing. Remove subtle haze and minor pigments while preserving delicate, low-boiling-point terpenes and preventing moisture-induced media clumping.

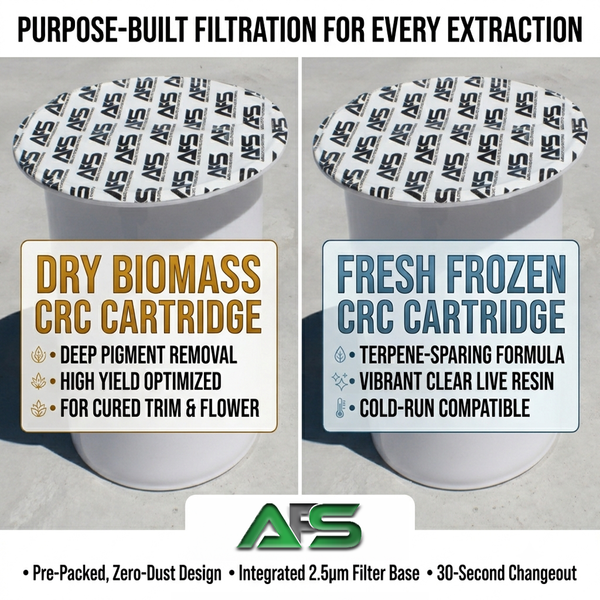

Purpose-Engineered Solutions by AFS

Rather than forcing technicians to guess loose media ratios or risk batch-to-batch inconsistency, AFS pre-packs targeted recipes into hermetically sealed, drop-in cartridges.

                  ┌──────────────────────────────────────────────┐
                  │           AFS Pre-Packed Platform            │
                  │   - Encapsulated, zero-dust design           │
                  │   - Hermetically sealed 2.5µm base filter    │
                  │   - Sub-zero to 70°C chemical compatibility  │
                  └──────────────────────┬───────────────────────┘
                                         │
                   ┌─────────────────────┴─────────────────────┐
                   ▼                                           ▼
   ┌───────────────────────────────┐           ┌───────────────────────────────┐
   │    Dry Biomass Cartridges     │           │   Fresh Frozen Cartridges     │
   ├───────────────────────────────┤           ├───────────────────────────────┤
   │ • Heavy pigment adsorption    │           │ • Terpene-sparing formula     │
   │ • Lipid & wax polishing       │           │ • Sub-zero flow optimization  │
   │ • High capacity for trim/cured│           │ • Optimizes Crystallization   │
   └───────────────────────────────┘           └───────────────────────────────┘

AFS Dry Biomass CRC Cartridges

Our Dry Biomass Blend is formulated with high-affinity adsorbents designed to pull out heavy plant pigments, pheophytin, and dark oxidation products common in cured material.

• High Pigment Capacity: Engineered to handle the heavy color load of cured trim and biomass.

• Channeling Prevention: Machine-packed at uniform density to prevent solvent "blow-through" and ensure full media utilization.

• Consistent Clarity: Transforms dark brown extracts into golden, market-ready concentrates in a single pass.

AFS Fresh Frozen CRC Cartridges

Live resin processing requires a delicate touch. The Fresh Frozen Blend uses a lighter, high-selectivity media profile that targets haze-forming compounds and unwanted pigments without stripping terpene fractions.

• Terpene Preservation: Preserves signature strain aromas and flavor profiles.

• Cold-Run Optimization: Performs reliably down to -40°C without media blinding or flow restriction.

• Water-Clear Finish: Removes micro-haze caused by ambient moisture without stripping delicate terpenes.

Fresh Frozen vs. Dry Biomass Cartridges: Comparison

The Core Advantages of the AFS Cartridge Platform

Whether running Dry Biomass or Fresh Frozen formulas, every AFS cartridge shares our signature engineering benefits:

Zero Dust Exposure: Pre-packed cartridges eliminate loose silica, bentonite, or carbon dust in your facility, protecting technicians and cleanrooms.

Integrated 2.5µm Leak Protection: Every unit features a hermetically sealed 2.5µm cellulose filter base, guaranteeing zero media particulate leakage into your final extract.

Plug-and-Play Swaps: Swap spent cartridges in under 30 seconds—eliminating tedious column repacking, screen scrubbing, and costly downtime.

Repeatable Batch Quality: Eliminate human error in hand-packing to achieve identical color, clarity, and purity from run 1 to run 100.

Elevate Your Extraction Workflow

Matching your remediation strategy to your starting material is the fastest way to maximize extract value, preserve natural profiles, and increase lab throughput.

Ready to eliminate the mess of loose powder and optimize your runs? Explore our complete line of Dry Biomass and Fresh Frozen pre-packed cartridges at afsfilter.com or contact our technical team to find the exact setup for your extraction system.
