CRC Filter Sizing Guide
Find the Exact Fit for Your Rig

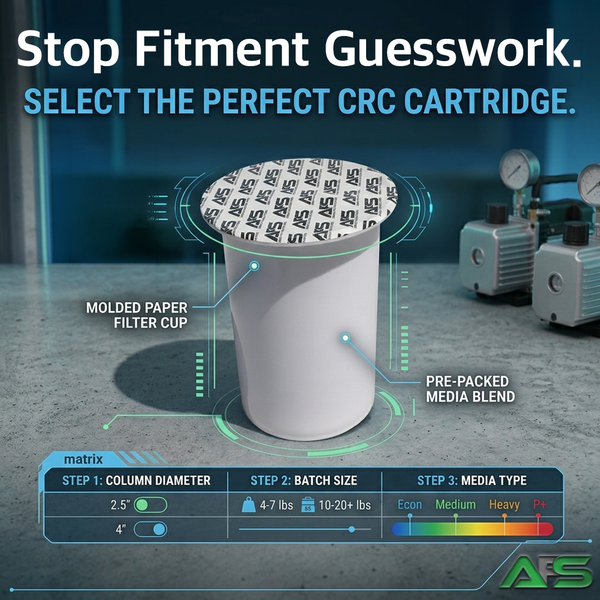

Wrong filter sizing causes leaks, pressure spikes, and lost production time. While pre-packed AFS filter cups eliminate messy loose powder and channeling, you still need to ensure a perfect mechanical fit.
Use this quick 3-step guide to select the right cartridge for your closed-loop system.
Step 1: Pick Your Column Size (2.5" vs 4")
The primary measurement you need is the Spool Diameter of your extraction spool. AFS filter cups feature a molded outer rim that seats directly into standard sanitary columns.
+-------------------------------------------------------------+
| EXTRACTION SPOOL |
| |
| +-----------------------------------------------------+ |
| | AFS FILTER CUP | |
| | [ Pre-Packed Media: Econ, Medium, Heavy, P+ ] | |
| |=====================================================| |
| +-----------------------------------------------------+ |
| [ Built-in 2.5 µm Base ] |
| |
+-------------------------------------------------------------+
2.5-Inch Cartridges
-
Best For: Small-batch runs and compact inline housings.
-
Batch Capacity: 4 to 7 lbs of dry material per run.
-
Standard Packaging: 12-pack cases.
4-Inch Cartridges
-
Best For: High-throughput commercial production.
-
Batch Capacity: 10 to 20+ lbs of dry material per run.
-
Standard Packaging: 6-pack cases.
Step 2: Quick Specs & System Limits
Confirm your hardware parameters against our cartridge limits:
-
Micron Rating: 2.5 µm (Molded Paper Base)
-
Max Pressure: 350 PSI
-
Connections Supported: 1.5" TC / 2" TC / Compression / NPT
-
Solvent Compatibility: Butane, Propane, and Hydrocarbon Mixes
Step 3: Match the Media to Your Input Material
| Blend Name | Input Material Target | Primary Function |
| Empty Cup | Custom Recipes | Open cup for packing your own media |
| Econ / Light | Fresh Frozen & High-Grade Biomass | Minor color polish; maximum terpene retention |
| Medium / Heavy | Aged Trim & Darker Biomass | Heavy chlorophyll and pigment removal |
| P+ | Specialty Input | Targeted removal of pesticides and heavy metals |
10-Second Pre-Order Checklist
Before hitting checkout, confirm these three items:
-
Spool Diameter: Is your column 2.5" or 4"?
-
Batch Volume: Are you looking for a Single Unit or stocking a Case?
-
Plumbing Fittings: Do you need 1.5" or 2" Triclamp gaskets, Compression, or NPT fittings?
