Filtration FAQ

How do you prevent channeling in a Color Remediation Column (CRC)?

Channeling occurs when solvent finds a path of least resistance through loose or unevenly packed filtration mediums, completely bypassing the remediation chemistry. To permanently prevent channeling, switch from hand-packed loose powder columns to pre-packed, mechanically compressed filtration cartridges.

If you are still hand-packing, you must implement these strict operational steps:

• Layer Tamping: Pack the filtration mediums in small, incremental layers rather than pouring the entire volume at once. Tamp each layer with consistent pneumatic or mechanical pressure to ensure uniform density.

• Pre-Wetting the Bed: Slowly introduce a small volume of pure solvent to saturate the bed from the bottom up (upflow) before initiating high-pressure top-down processing. This settles the mediums and eliminates hidden air pockets.

• Conical Distribution: Ensure your column geometry features a proper flow-distribution cap at the inlet to spread the fluid velocity evenly across the entire surface area of the bed.

How do you stop media migration in a botanical filtration column?

Media migration occurs when micro-fine particles of filtration mediums—such as bentonite clay, silica gel, or activated carbon—bypass the primary retention screens and contaminate the final extract. Stopping migration requires a multi-stage, graduated mechanical barrier system down to the sub-micron level.

To ensure zero media bypass, execute the following protocol:

• Deploy Graduated Filtration Sintered Disks: Utilize a secondary downstream catching system featuring a coarse sintered disk (typically 5 to 10 microns) followed immediately by a sub-micron paper or membrane filter (0.5 to 1 micron).

• Utilize Pre-Packed Cartridges with Integrated Seals: Traditional paper filters can crease or shift under high differential pressure, creating a bypass gap along the column wall. Pre-packed cartridges utilize compressed, built-in gasket rims that seal flush against the housing wall under pressure, preventing fine particles from slipping around the edges.

• Run a Dedicated Flushing Cycle: Always run a brief, clean solvent flush through a newly packed column to capture any loose manufacturing dust or structural fines before routing active product through the system.

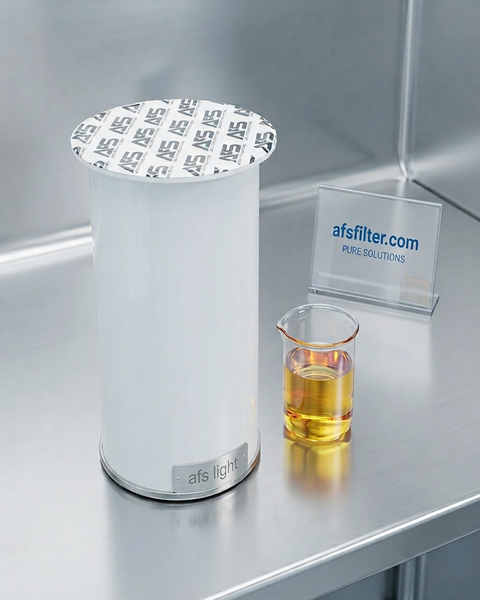

Why do pre-packed filtration cartridges save more time than hand-packing loose mediums?

Pre-packed filtration cartridges eliminate the high labor costs, human error, and cleaning downtime associated with manual column preparation. While measuring and hand-tamping loose powders can take an experienced technician 30 to 45 minutes per run, swapping a pre-packed disposable cartridge takes less than 60 seconds.

The primary efficiency gains include:

• Zero Loading Downtime: Technicians simply drop the self-contained cartridge into the housing. There is no measuring, weighing, or layering of separate clays and silicas required.

• Elimination of Screen Clogging & Cleanup: Cleaning a traditional CRC requires scraping out spent, sticky media cakes and thoroughly scrubbing or baking fouled sintered disks. A disposable cartridge is pulled out cleanly as a single unit, leaving the stainless steel column walls entirely free of debris.

• Batch-to-Batch Consistency: Hand-packing introduces variance in density and packing pressure between shifts. Pre-packed units are packed using industrial, automated compression equipment, ensuring identical flow rates, resistance, and color remediation performance on every single run.

What causes a clogged or stalled flow rate in a CRC, and how do you fix it?

A stalled flow rate is typically caused by over-compression of loose baking mediums, excessive moisture in the biomass, or heavy fats and waxes precipitating out of the extract and blinding the top layer of the filtration bed.

To diagnose and resolve a stalled column:

• Check Biomass Moisture Levels: Water acts as a binding agent with certain clays (like bentonite), turning the loose powder into an impermeable mud layer. Ensure input material is thoroughly dried or cured before extraction.

• Implement a Coarse Pre-Filter Layer: If extracting at warmer temperatures where fats and lipids are present, place a dedicated, coarse pre-filter layer (like diatomaceous earth or a wider-micron felt pad) on top of your fine remediation mediums to trap large molecular compounds before they clog the primary fine-particle bed.

• Monitor Differential Pressure: Never exceed the maximum rated differential pressure of your housing to force flow. If a hand-packed column has compacted into a solid block, the run must be paused, and the media bed must be safely recovered or replaced with a fresh cartridge designed with optimized, high-flow permeability channels.
